Gear box

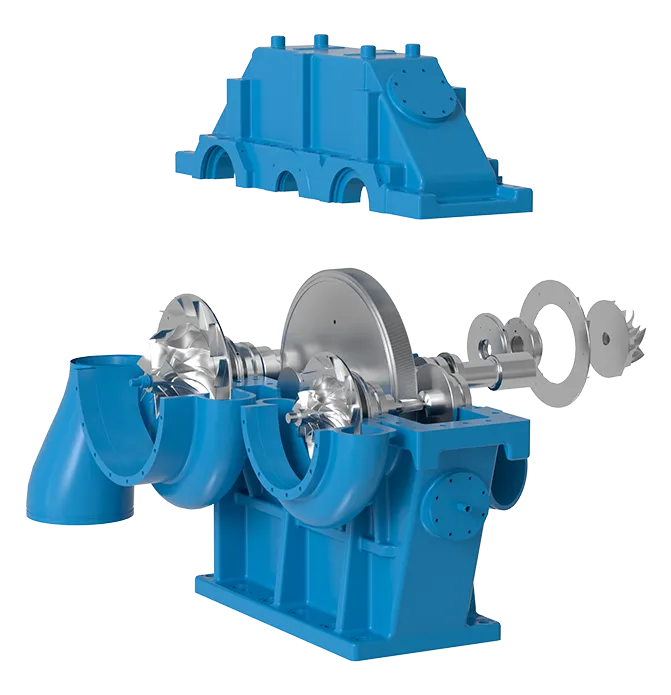

Horizontal split type for easy maintenance of the bearings and shaft seals.Thrust collar instead of thrust bearings. Which makes the structure simpler and increase the transmission efficiency and reliability.
MENU
Horizontal split type for easy maintenance of the bearings and shaft seals.Thrust collar instead of thrust bearings. Which makes the structure simpler and increase the transmission efficiency and reliability.
The gas & oil seal is labyrinth type, which has no contact to the shaft, no abrasion, long life, and low maintenance, no consumption of instrument air, and also, horizontal split makes easier maintenance.
Tilting pad journal bearing realize high-speed and stable operation.Pad tilt will self-adjust.when the bearing load changes.CC pad of high heat conductivity and high strength can decrease the bearing temperatureand promote the stability of the rotor system.
The diffuser converts the kinetic energy of the gas into static pressure energy, and the diffuser with the impeller matching design can make the whole machine efficient.MA process surface treatment, to obtain the surface hardness of HV1300 or more, long-lasting abrasion resistance and corrosion resistance, to improve the service life of the diffuser by 3 times.

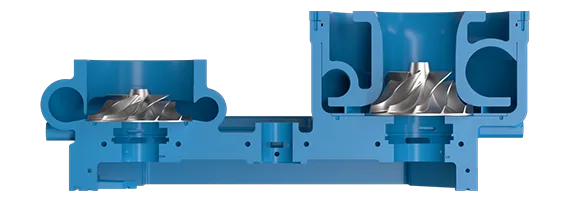

90°corner,High aerodynamic loss

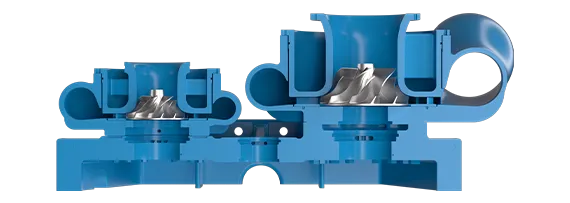

Smooth flow, No aerodynamic loss

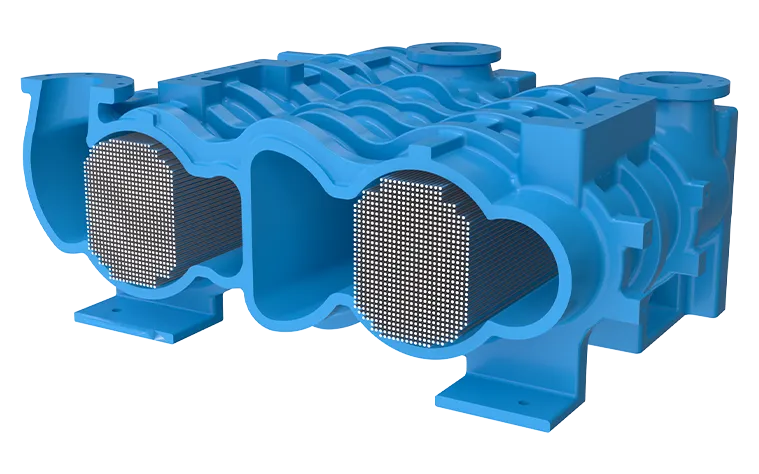

Water in tube and air in shell, easy maintenance
Variable cross-section patented design is adopted for cooler cabinet
Low flow loss and better drainage
Patented self-seal structure, easy maintenance and higher relibility
Super lager design can meet the extreme working condition
Allowance for heat recovery design. which improves the comprehensive utilization efficiency of energy

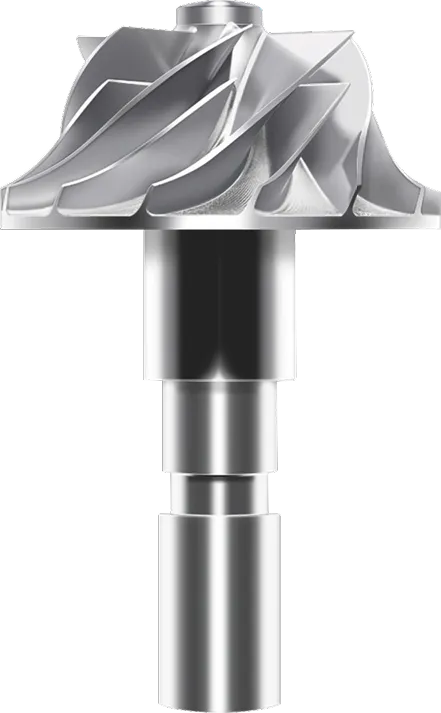

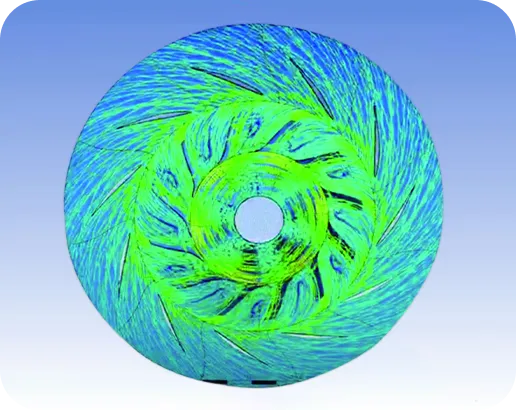

The unique seventh generation impeller design, customized impellers, diffusers, volutes, and coolers operate in accordance with application requirements, achieving the best isothermal efficiency and minimum mechanical losses. The unit design and manufacturing consider the stability of efficiency during long-term operation, truly achieving long-term energy-saving.

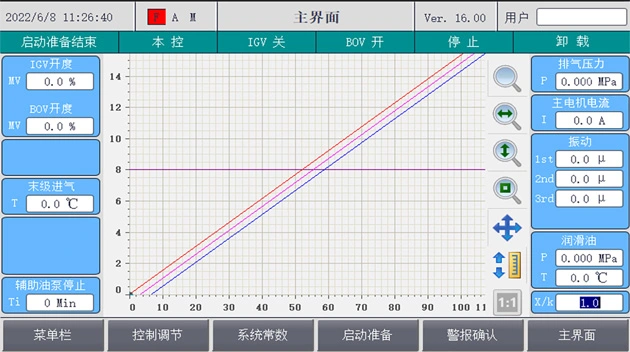

Data monitoring+visualization: reducing operational risks by 99%

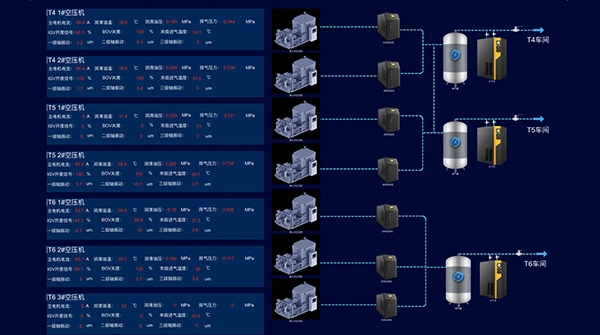

Data Intelligent Cockpit, a comprehensive overview of factory data, real-time monitoring
Online fault warning, reduction downtime risk

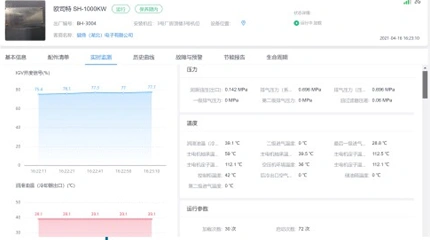

Workshop comprehensive diagnostic report
Data monitoring+visualization: reducing operational risks by 99%
Data Intelligent Cockpit, a comprehensive overview of factory data, real-time monitoring
Online fault warning, reduction downtime risk
Workshop comprehensive diagnostic report
Data monitoring+visualization: reducing operational risks by 99%
Data Intelligent Cockpit, a comprehensive overview of factory data, real-time monitoring
Online fault warning, reduction downtime risk
Workshop comprehensive diagnostic report
Data monitoring+visualization: reducing operational risks by 99%
Data Intelligent Cockpit, a comprehensive overview of factory data, real-time monitoring
Online fault warning, reduction downtime risk
Workshop comprehensive diagnostic report
